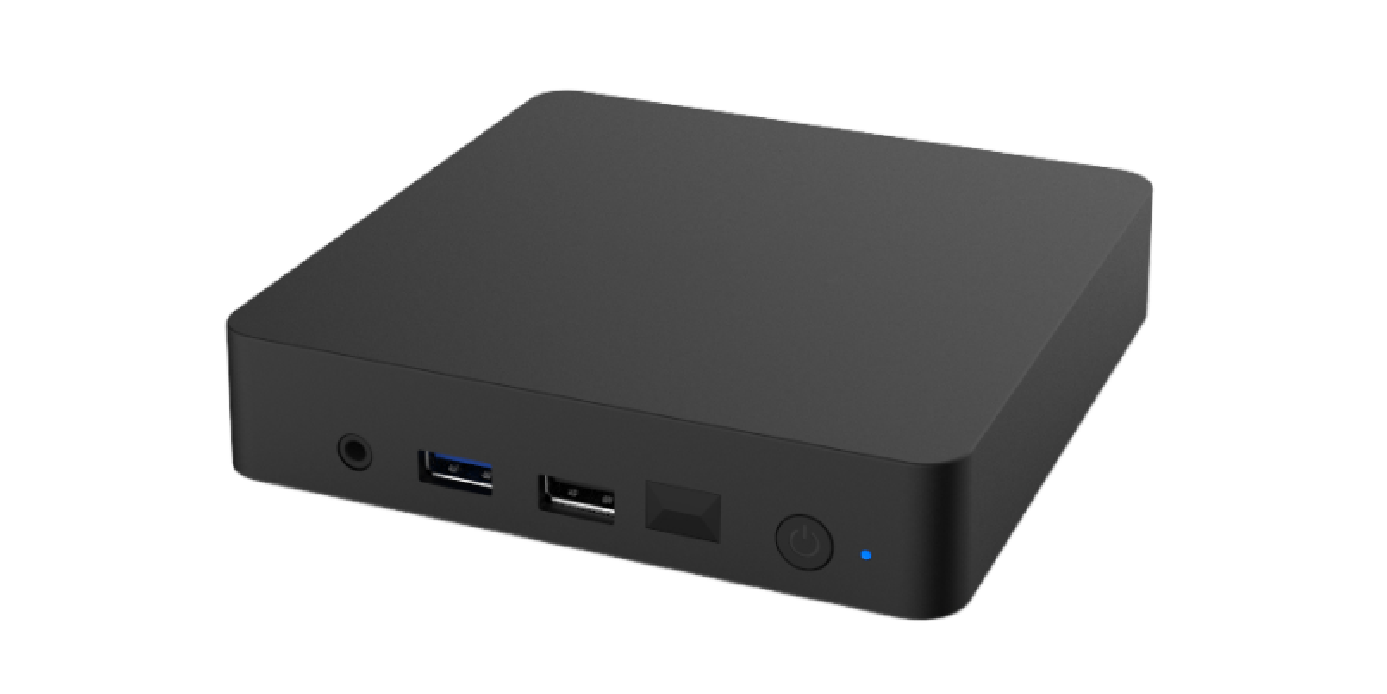

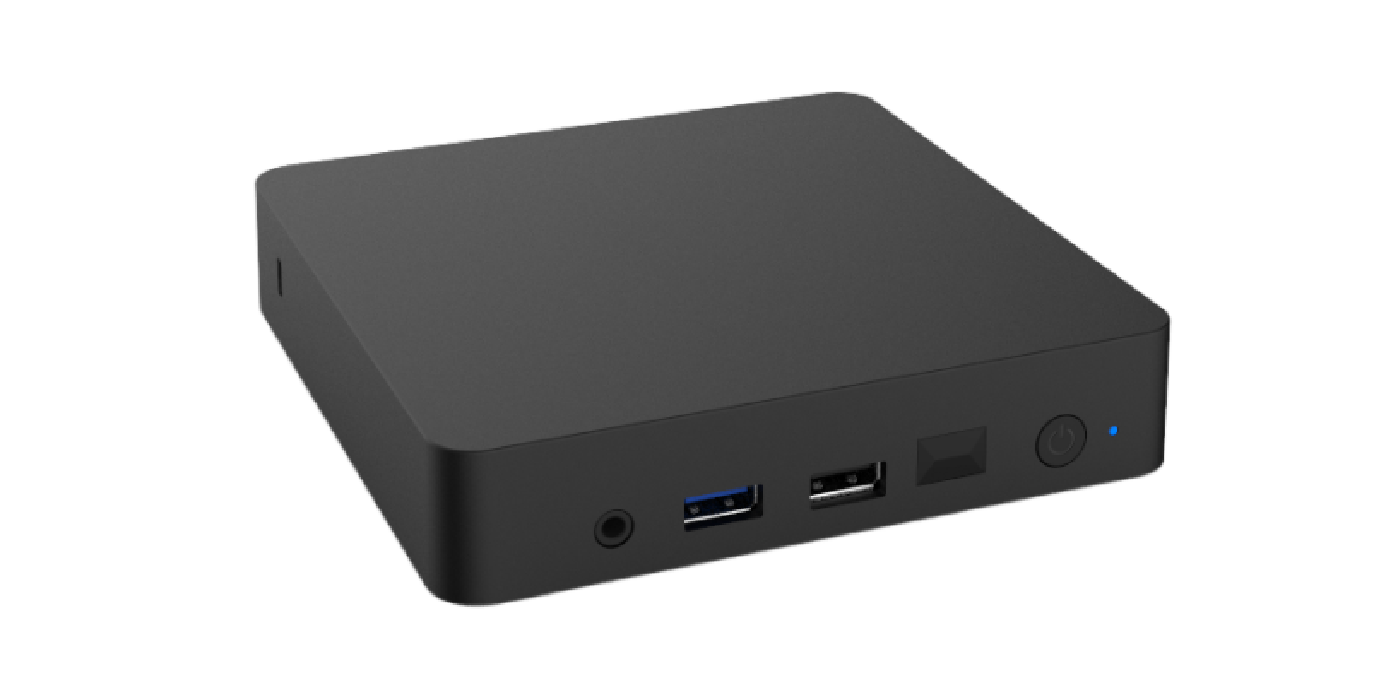

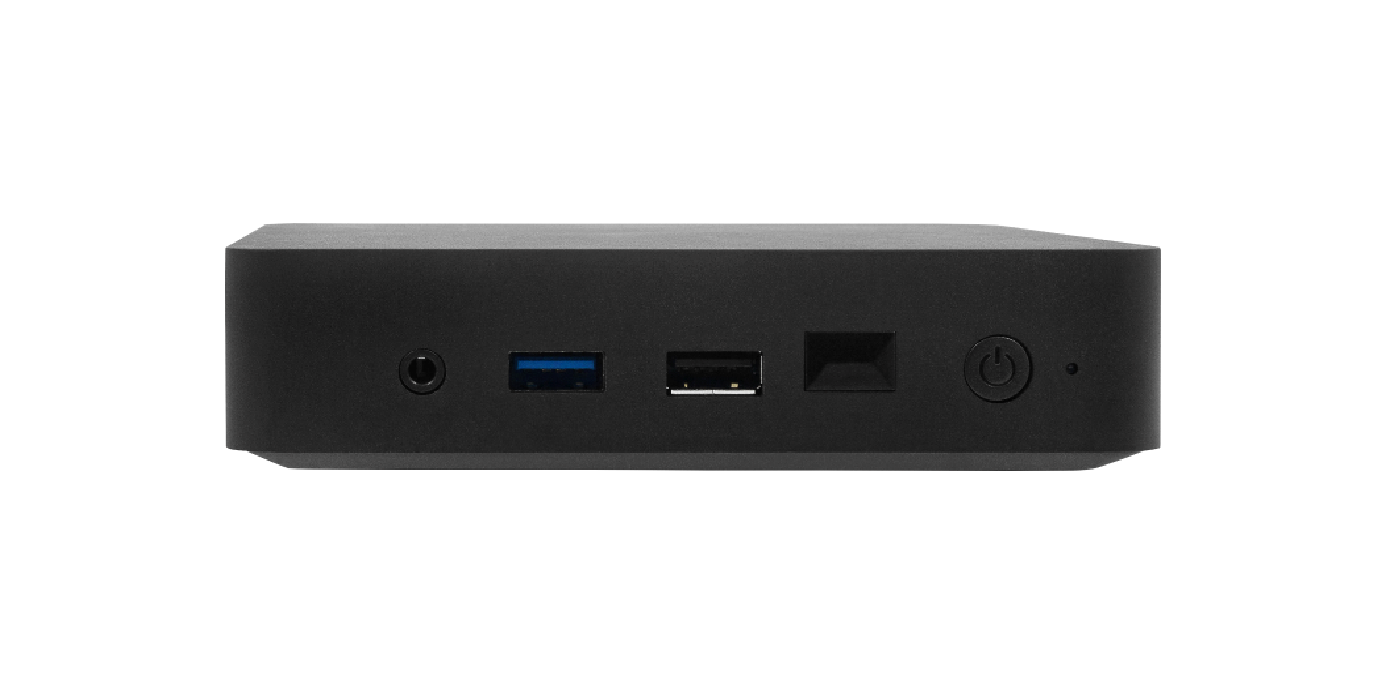

T466

ARM VDI云终端

采用RK3566平台，具备丰富的IO扩展接口，广泛应用教育、政务、医疗、金融等行业

留言咨询业务咨询

规格参数

CPU	CPU	Rk3566,Quad-core Cortex-A55 Up to 1.8Ghz
	TDP	6W
	NPU	1TOPS
Display	Graphics	ARM G52 2EE
	Multi displays	N/A
	Interface	1 x HDMI-Out
Network	Lan IC	1 x Realtek Lan IC
	Lan Interface	10/100/1000Mbps
	Lan Connector	1 x RJ45 Port
	Wireless Type	WIFI5
	Wireless Interface	Onboard WIFI Module
	4G/5G	N/A
I/O interface	Serial Port	N/A
	USB	1 x USB3.0，3 x USB2.0
	Button	1 x PowerButton, 1 x Recover Key
	IR	1 x IR
	AUDIO	1 x 3.5mm Audio Jack (2 In 1)
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	Onboard DDR4 2GB (Support 1/4GB Option)
	Storage	Onboard EMMC 8GB (Support 16/32/64GB Option)
	OS	Android 11
	WatchDog	Support
	Auto Power On	Support
	RTC	Power on at specific time everyday
	Power Input	12v DC-In (2.5/5.5 DC Jack)
	Dimension	128mm(L) x 128mm(W) x 30mm(H)
	Operating Temp.	0~40℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
