S088

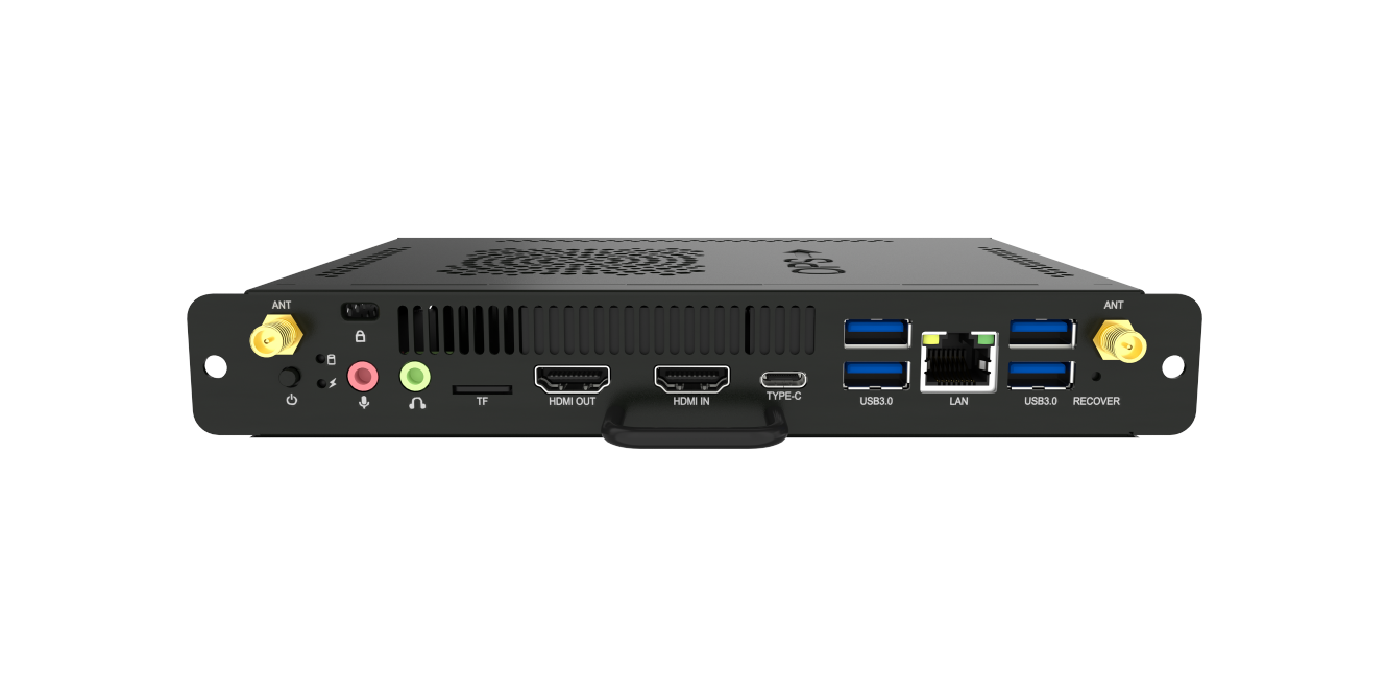

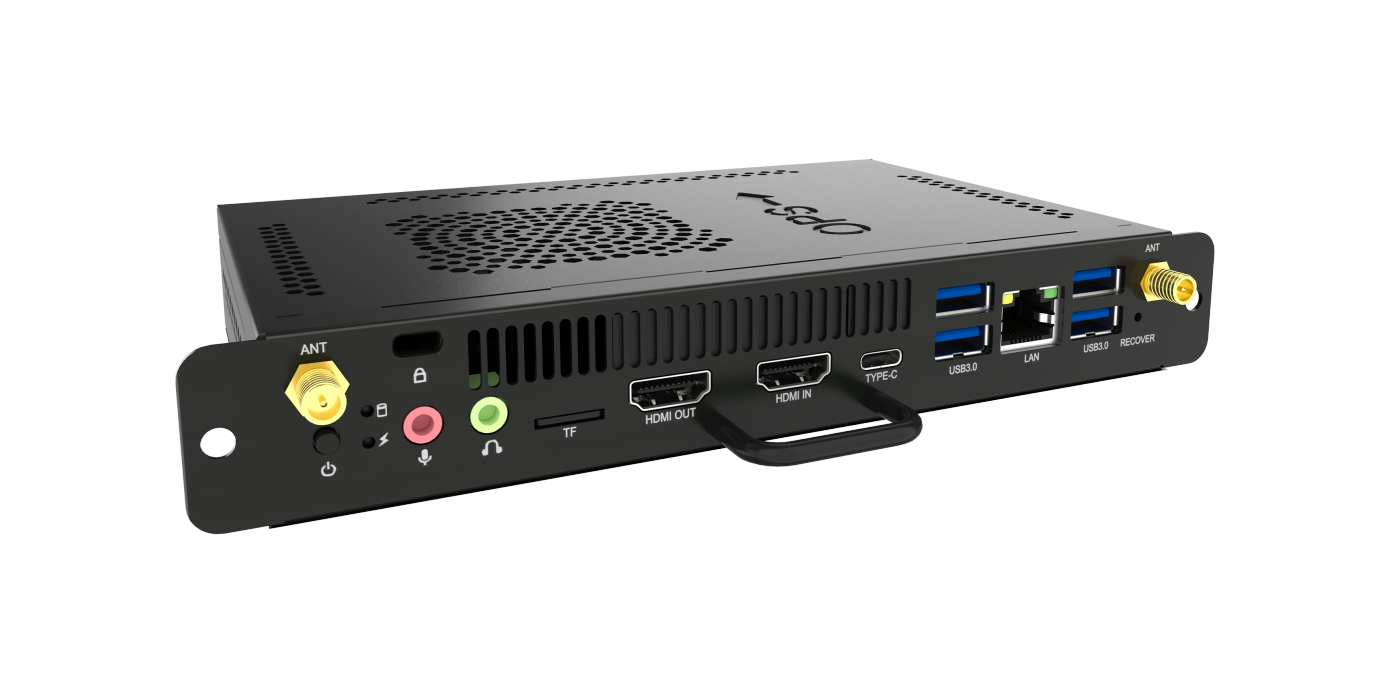

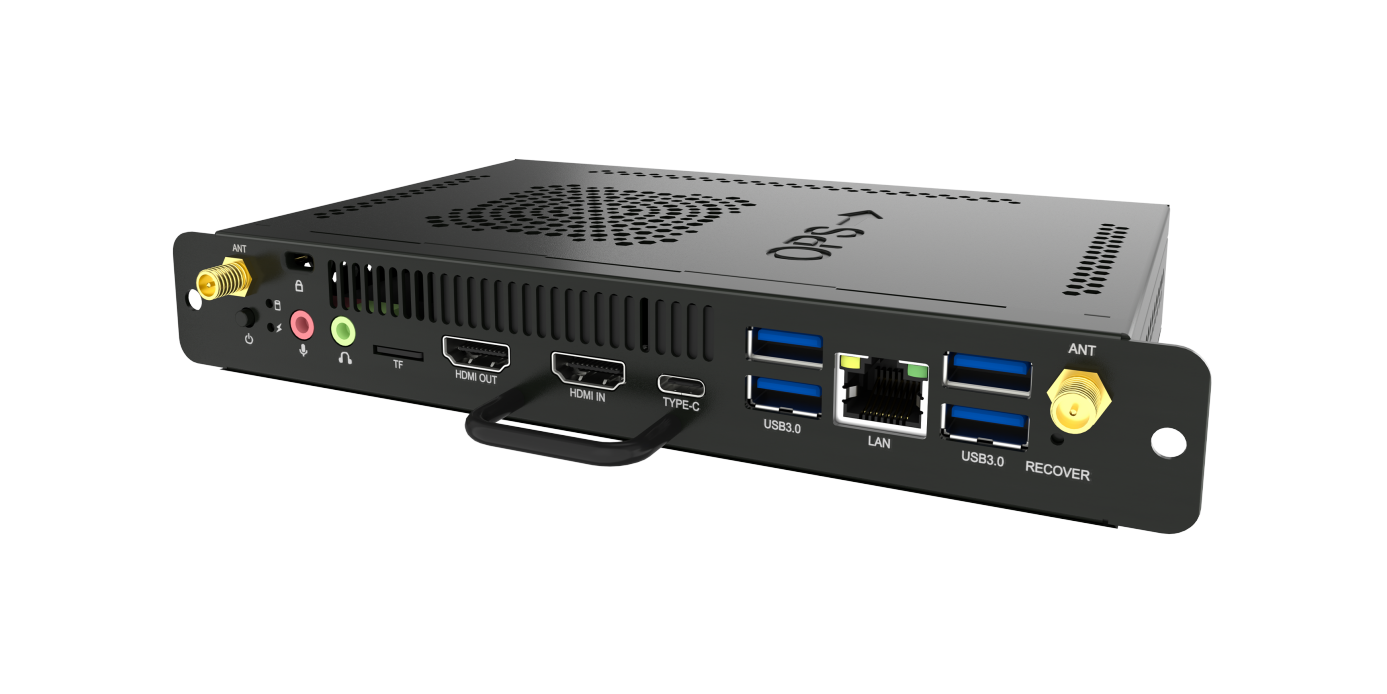

ARM平台OPS整机

采用瑞芯微RK3588平台设计，搭载四核Cortex-A76加上四核Cortex-A53处理器，参考标准OPS标准，4K显示，是会议解决方案、教育和数字标牌应用的理想选择。

留言咨询业务咨询

规格参数

CPU	CPU	RK3588
CPU	TDP	7 W
Display	Graphic card	Mali-G610 MC4
	Multi displays	Support Dual displays
	Interface	1 x HDMI-Out 4K@60Hz, 1 x HDMI-In 4K@60Hz; 1 x 80pin HDMI-Out 4K @60Hz
Network	Lan IC	1 x LAN IC
	Lan Interface	10/100/1000Mbps
	Lan Connector	1 x RJ45 Port
	Wireless Type	M.2 Key E 2230 Connector
	Wireless Interface	Mini PCIe WiFi/BT Module
	4G/5G	Optional
I/O interface	Display	1 x HDMI-Out 4K@60Hz, 1 x HDMI-In 4K@60Hz
	USB	4 x USB3.0 Type-A, 1 x Type-C
	Button	1 x PowerButton, 1 x Clear CMOS Key
	Slot	1 x SIM Card Slot 1 x Micro SD Card Micro SD Card
	AUDIO	1 x Line Out ; 1 x MIC-In
	POWER	1 x 2.5/5.5 DC-IN Connector
	JAE	1 x 80PIN jJAE Support 1 x HDMI2.0 4K60Hz output 2 x USB2.0, 1 x USB3.0, 1 x TTL, other control signals
System	Memory	LPDDR4x 4G/8G
	Storage	OnboardEMMC5.1 16GB/32GB/64GB/128GB
	OS	Android13
	WatchDog	Support
	Auto Power On	Yes
	RTC	Power On/Off at specific time ,a week
	Power Input	12~19V DC IN, 2.5/5.5 DC Jack & JAE 80p
	Dimension	119mm(L) x 180mm(W) x 30mm(H)
	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	10%~90% non-condensing
