CA22A

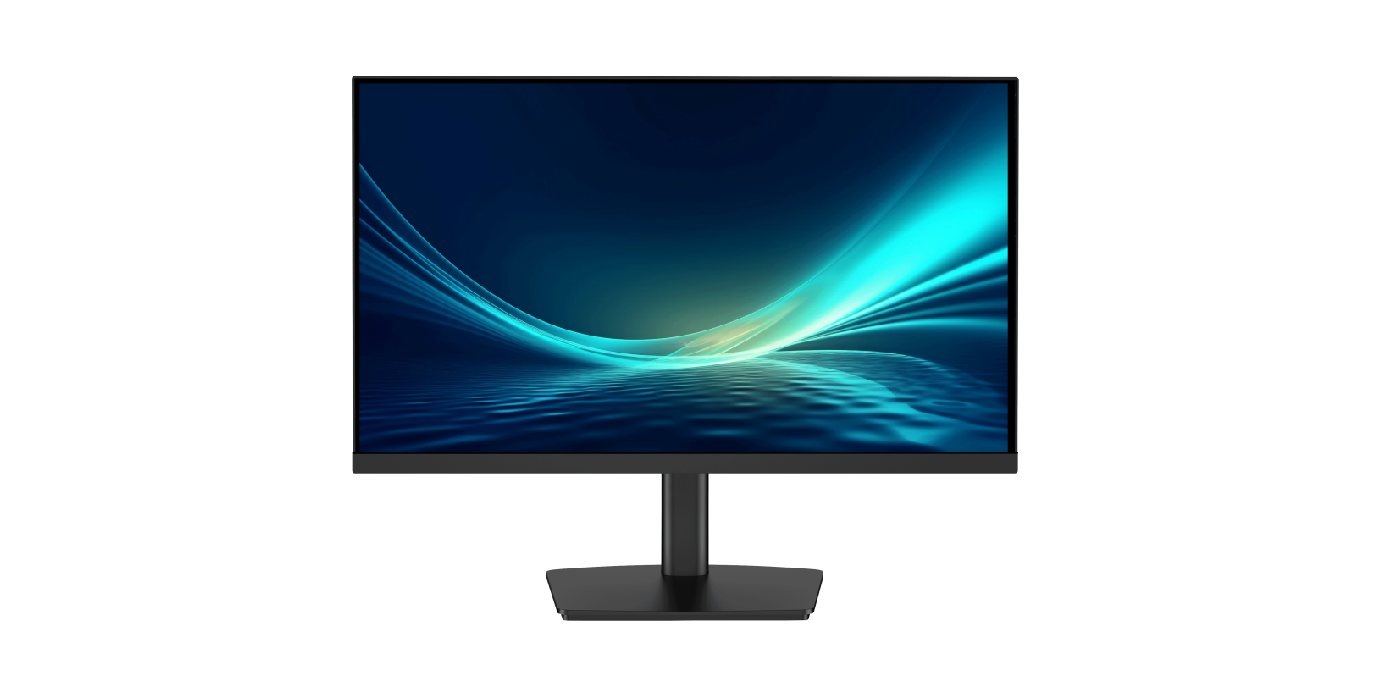

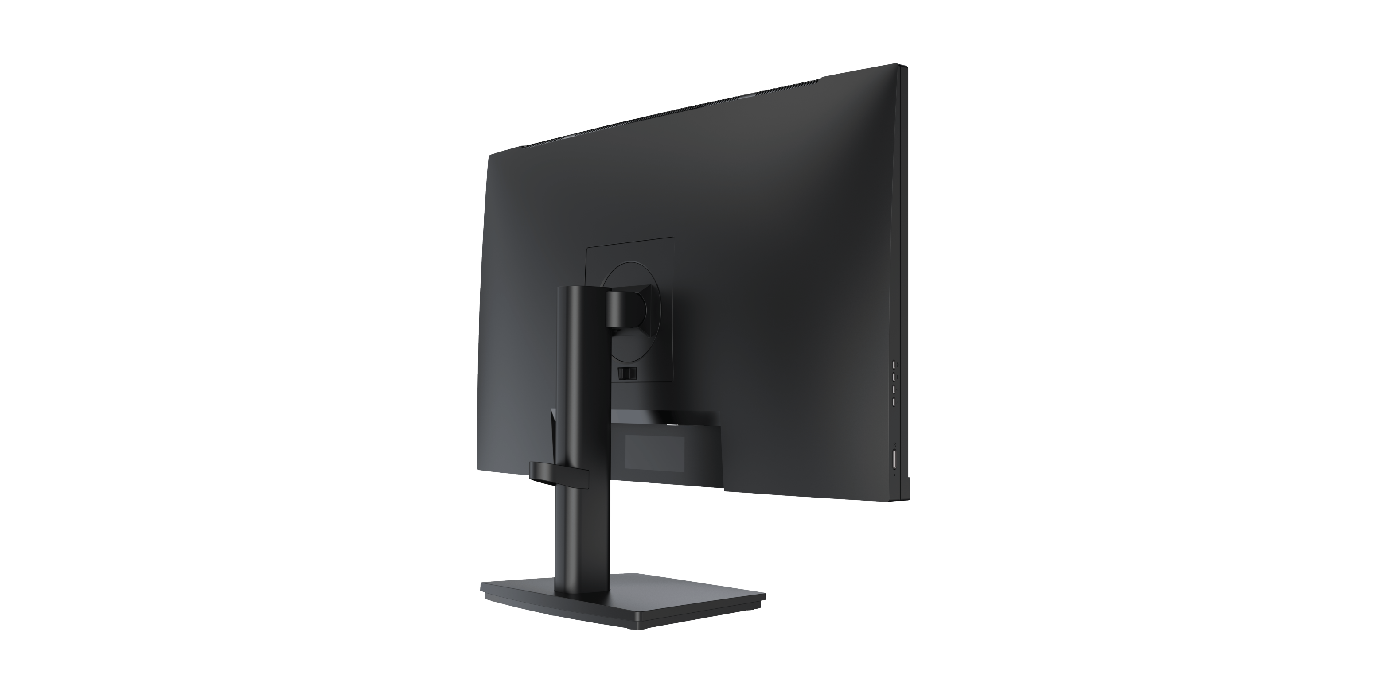

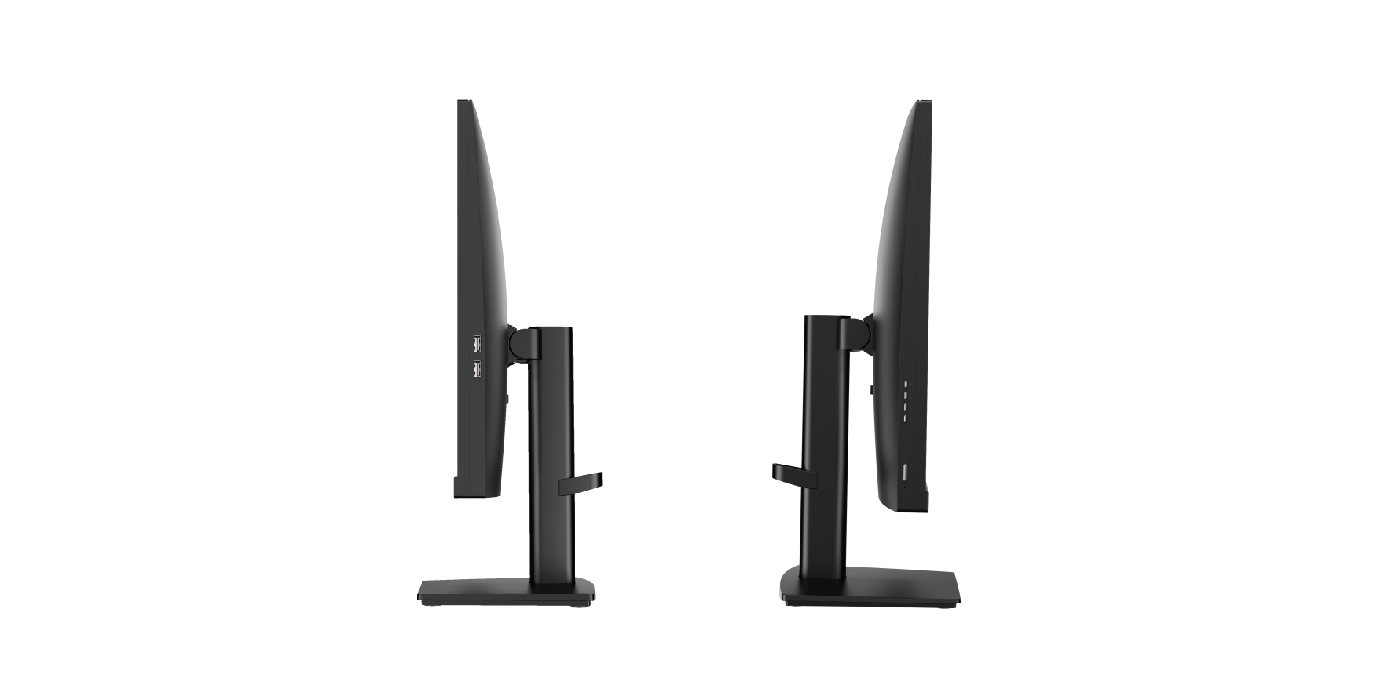

21.5" 云一体机

21.5英寸ARM系列云一体机，具有安全静音、接口丰富等特点，广泛应用于云办公使用场景。

留言咨询业务咨询

规格参数

CPU	CPU	RK3566，4 Core A55, 1.8GHz
	TDP	6 W
	NPU	1 TOPS
Display	Graphic card	ARM Mali-G52
	Multi displays	Screen Mirroring
	Interface	1 x HDMI-Out 4K @60Hz
Network	Lan IC	RTL8111H
	Lan Interface	100/1000Mbps
	Lan Connector	1 x RJ45 Ports
	Wireless Type	SDIO
	Wireless Interface	1T1R, 2.4G/5G WiFi5 /BT4.2
	4G/5G	N/A
I/O interface	Serial Port	N/A
	USB	1 x USB3.0, 3 x USB2.0
	Button	1 x Volume up, 1 x volume down, 1 x system settings, 1 x screen off, 1 x Power Button
	SIM CARD	N/A
	AUDIO	1 x 3.5mm Audio Jack（Mic-In + Line Out）
	POWER	1 x 2.1/5.5 DC-IN Connector
System	Memory	2GB LPDDR4/4X
	Storage	16GB EMMC
	OS	Android 11
	LCD	21.5 inch, 1920*1080 IPS, LVDS
	MCU	Optional (Wake-on-LAN /Remote Shutdown /Watchdog /Auto Power On)
	Camera	Optional Elevating Camera
	Speaker	2 x 8Ω / 3W
	Power Input	12v 2.1/5.5 DC-In
	Dimension	494mm(L) x 390mm(W) x 175mm(H)
	Operating Temp.	0~40℃
	Operating Humidity	20%~80% non-condensing
	Storage Temp	-20~65℃
	Operating Humidity	20%~95% non-condensing
