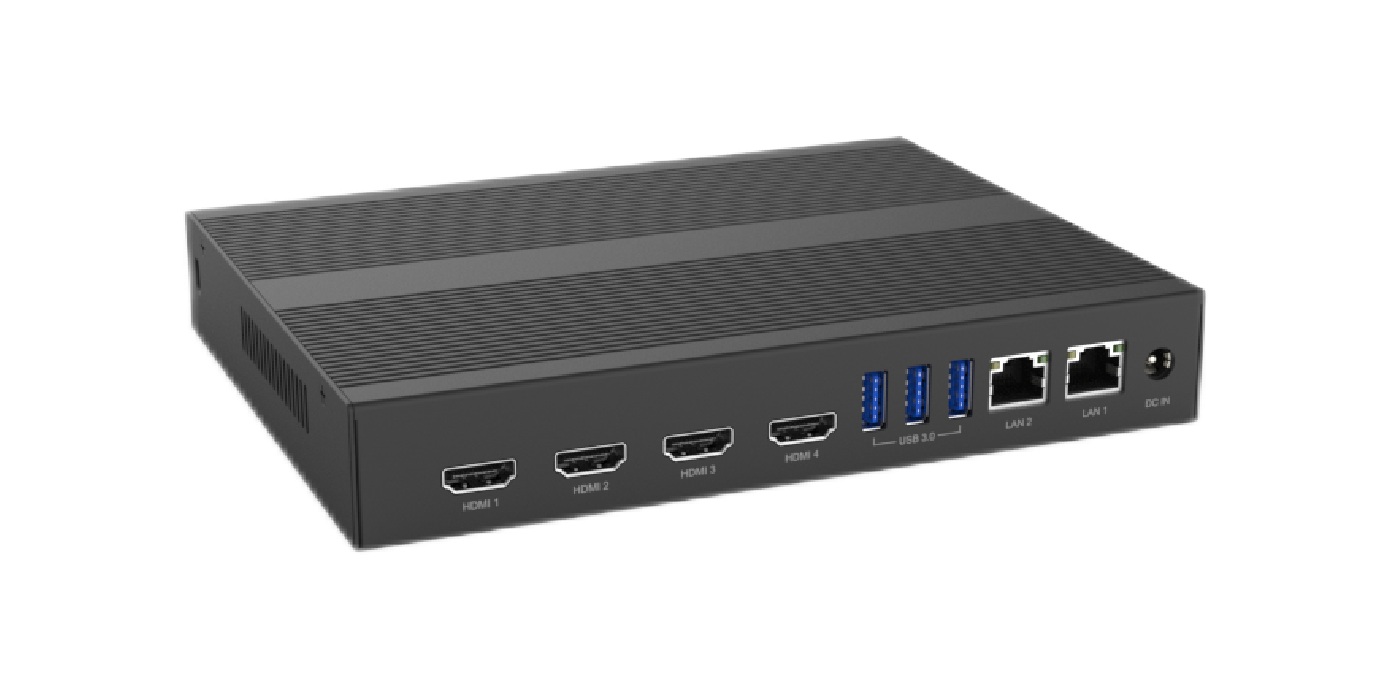

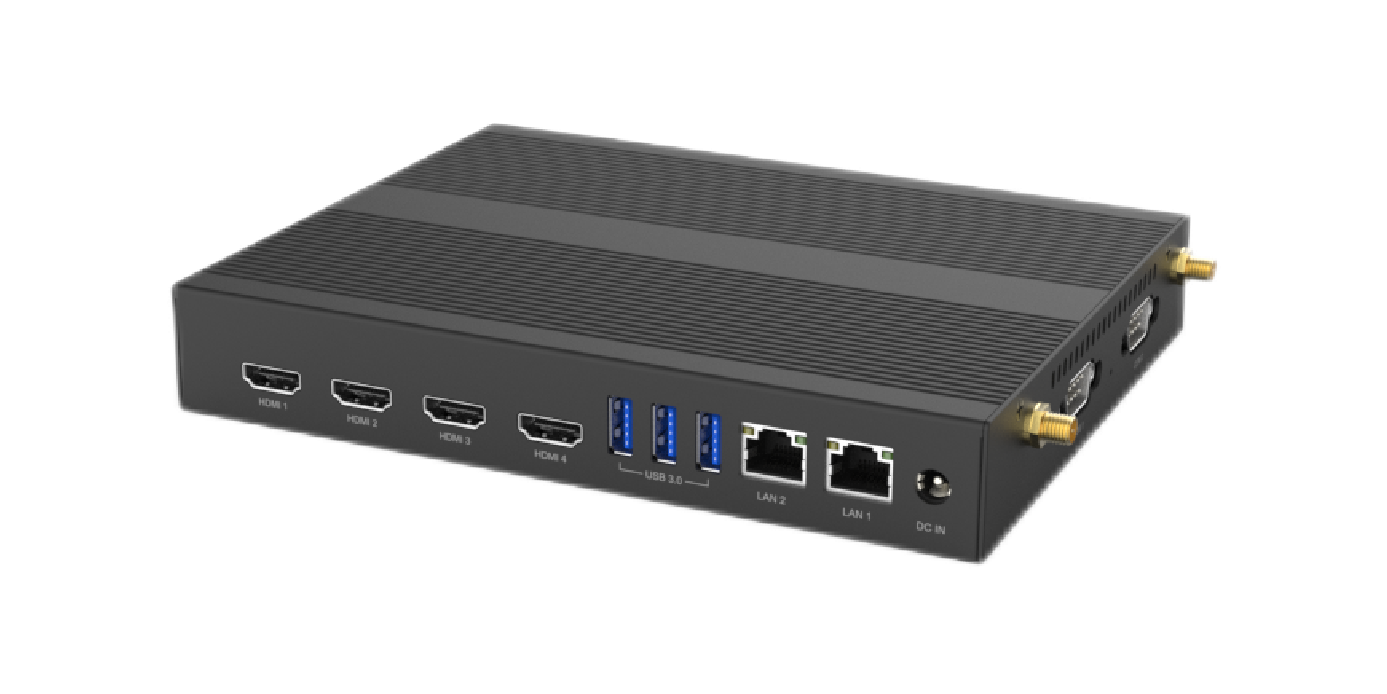

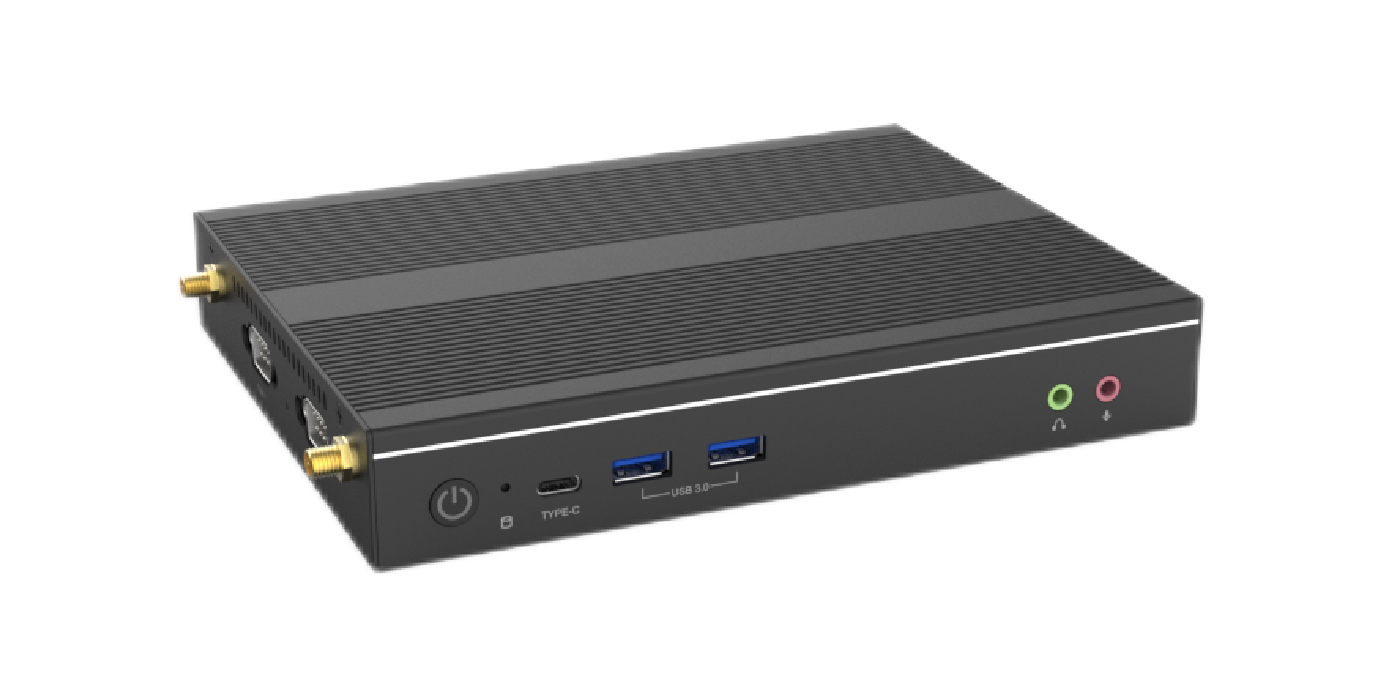

K115

X86 平台商显终端

基于英特尔Raptor Lake-U平台设计，处理器采用E+P混合技术架构，具有英特尔pro技术和TPM2.0功能，可给予远程管理和数据安全性。是理想的数字标牌、自主设备以及信息发布系统的硬件解决方案。

留言咨询业务咨询

规格参数

CPU	CPU	Intel® Processor I3-1315U/ I5-1335U / I7-1355U
CPU	TDP	15 W
Display	Graphic card	Intel® Iris® Xe Graphics (I5-1335U/ I7-1355U) Intel UHD Graphics (I3-1315U)
	Multi displays	Support Four displays
	Interface	4 x HDMI-Out 4K @60Hz
Network	Lan IC	2 x LAN IC
	Lan Interface	10/100/1000Mbps/2.5Gbps
	Lan Connector	2 x RJ45 Ports
	Wireless Type	M.2 Key E 2230 Module
	Wireless Interface	Mini PCIe WiFi/BT Module, Intel 3165/ Intel AX101/Intel AX210
	4G/5G	Optional
I/O interface	Serial Port	2 x RS232 COM1/2 Connector
	USB	5 x USB3.0, 1 x Type-C
	Button	1 x PowerButton, 1 x Clear CMOS Key
	SIM CARD	1 x SIM Card Slot
	AUDIO	1 x Line Out ; 1 x MIC-In
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	Dual SoDIMM DDR4 Max. 32 GB
	Storage	1* M.2 Key M 2280 Size For NVMe/SATA SSD
	OS	Window11 /Windows10/ Linux
	WatchDog	Support
	Auto Power On	Yes
	RTC	Power on at specific time everyday
	Power Input	12-19v 2.5/5.5 DC-In
	Dimension	190mm(L) x 148mm(W) x 30mm(H)
	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
